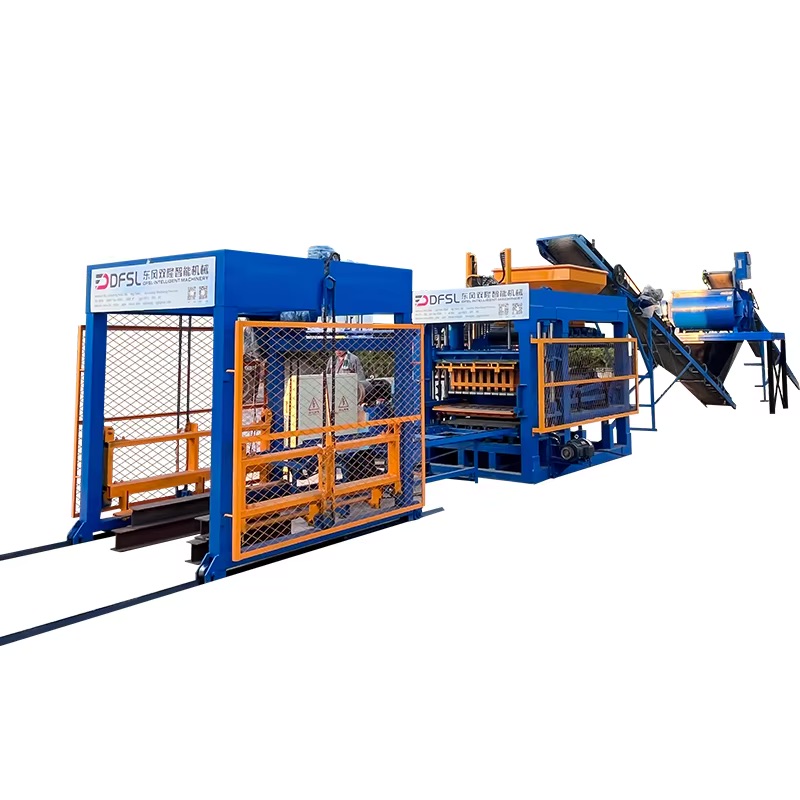

QT5-15 Automatic Concrete Block Making Machine
| The Dongfeng Shuanglong QT5-15 Automatic Block Making Machine revolutionizes industrial manufacturing as a budget-friendly, mid-sized powerhouse. Its advanced integration of smart control systems and hydraulic-vibration forming technology streamlines the production process, churning out top-notch concrete and fly ash blocks with remarkable efficiency. Tailored for global small to medium enterprises, rural infrastructure projects, on-site fabrication, and recycling initiatives, this machine transforms abundant resources like river sand and fly ash into diverse block types. Offering a low entry cost and rapid return on investment, it stands as the go-to solution for businesses aiming to dominate the building materials market. |
|
Specification
|
Total Weight
|
12000KG
|
|
Molding Cycle
|
15-25s
|
|
Vibration Form
|
Table Vibration
|
|
Vibration Frequency
|
2000-4000r/min
|
|
Vibration Force
|
100KN
|
|
Rated Pressure
|
21Mpa
|
|
Power
|
28.25KW
|
|
Pallet Size
|
650*1100*30mm
|
|
Dimension
|
3390*2400*4000mm
|
| Size(LxWxH) | Reference Picture | Cycle Molding | Pcs/Mould | Pcs/Hour | Pcs/8hrs | |
| 400x200x200mm |  |
15-20s | 5 | 1200 | 9600 | |
| 400x100x200mm | |
15-20s | 9 | 2160-3240 | 21600-32400 | |
| 400x150x200mm | |
15-20s | 6 | 1440 | 11520 | |
