H-beam Assembling Welding Straightening Integral Machine
|
Cut costs in steel structure processing? Check this combined welding & straightening machine!
Traditional H-beam processing requires 3 separate processes with constant material handling? This **H-beam assembling, welding & straightening integrated machine** integrates assembling, welding and straightening into one unit. Key advantages: ✔️ No beveling needed for webs ≤18mm, reducing processing steps ✔️ Hot welding + hot straightening in one pass, enhancing operational continuity ✔️ Touchscreen operation, manageable by 1 person ✔️ Space-saving, smaller footprint than traditional equipment Core components adopt casting technology, suitable for steel structure workshops, bridge projects and other industries. |
Specification
|
Place of region
|
China
|
|
Shandong
|
|
|
Maritime ports
|
Qingdao
|
|
Web height
|
200mm~1800mm
|
|
Web thickness
|
6mm~30mm
|
|
Wing board width
|
200mm~800mm
|
|
Wing thickness
|
8mm~40mm
|
|
Welding position
|
45 ° angle welding
|
|
Welding method
|
Double sided submerged arc automatic welding
|
|
Welding power source
|
Single wire submerged arc welding, double-sided 1250A welding machine.
|
|
power
|
125KW
|

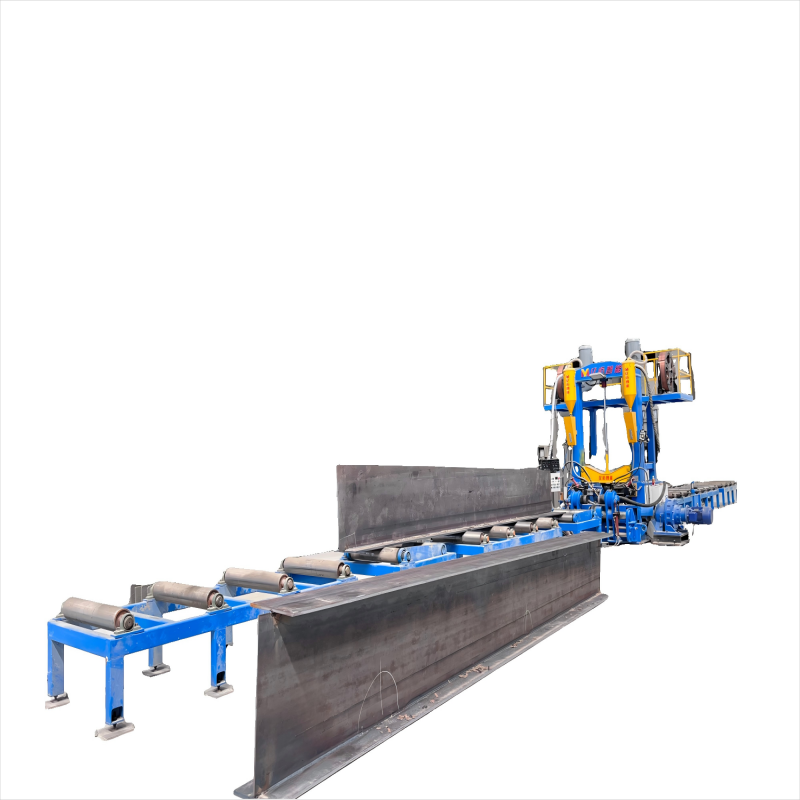

| Core Features 1. 3-in-1 Integrated Design Integrates assembly, welding, and straightening into one compact machine. Requires only 1-2 operators (fewer than separate equipment), shortens production cycles, boosts efficiency, and reduces labor costs. 2. Mechanical + Hydraulic Composite Straightening Adopts mechanical positioning + hydraulic composite technology. Adjustable straightening capacity enhances beam straightness accuracy, meeting industry quality standards. 3. Versatile Production Adaptability Adapts to batch production, customized processing, or emergency needs, maximizing equipment utilization. |
Use Scenarios
Steel Structure Workshop Managers Handling Continuous Beam Production
Workshop managers overseeing large-scale steel fabrication operations rely on consistent H-beam dimensions and stable weld seam quality. This machine supports uninterrupted production cycles by combining three essential stages. Plants building support frameworks for concrete blocks machine facilities or preparing elevated platforms required in brick maker environments benefit from its structural reliability and reduced need for rework.
Engineering Consultants Designing Heavy-Duty Support Systems
Engineering consultants tasked with verifying the structural load capacity of industrial buildings require precise, aligned H-beams to meet safety thresholds. This all-in-one solution enables predictable performance data, simplifying documentation for building approvals. When designing lifting gantry supports or equipment tunnels associated with concrete blocks machine production lines or brick maker transfer paths, consultants gain confidence from the machine’s dimensional consistency.
Fabrication Technicians Operating Multi-Shift Production Lines
Technicians responsible for continuous welding operations require machinery with stable thermal control and reliable straightening mechanisms. This machine’s integrated process reduces technical interruptions and minimizes weld distortion. Facilities supporting steel bases, conveyor support rails, or platform beams for concrete blocks machine systems and brick maker installations will experience fewer dimensional errors and less corrective grinding.
FAQ
1.What beam size range can the machine handle?
It supports multiple flange and web dimensions through adjustable clamping and hydraulic straightening modules.
2.How is welding quality maintained during long production cycles?
A dual-tracking system ensures stable alignment and consistent SAW welding deposition.
3.Is the machine compatible with existing shop cranes and roller tables?
Yes, its layout supports standard workshop logistics, including roller conveyors and overhead crane transfers.
4.What is the typical delivery cycle for overseas orders?
Standard production requires 25–35 days, depending on customization requests.
5.How is long-term maintenance supported?
We provide remote support, parts supply, and scheduled service guidance for operator teams.
