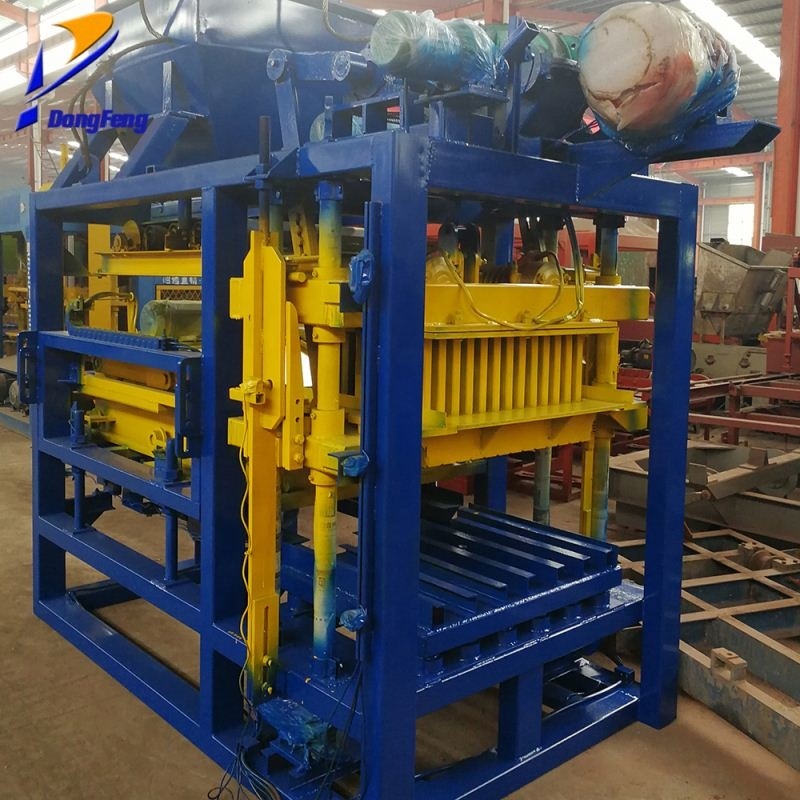

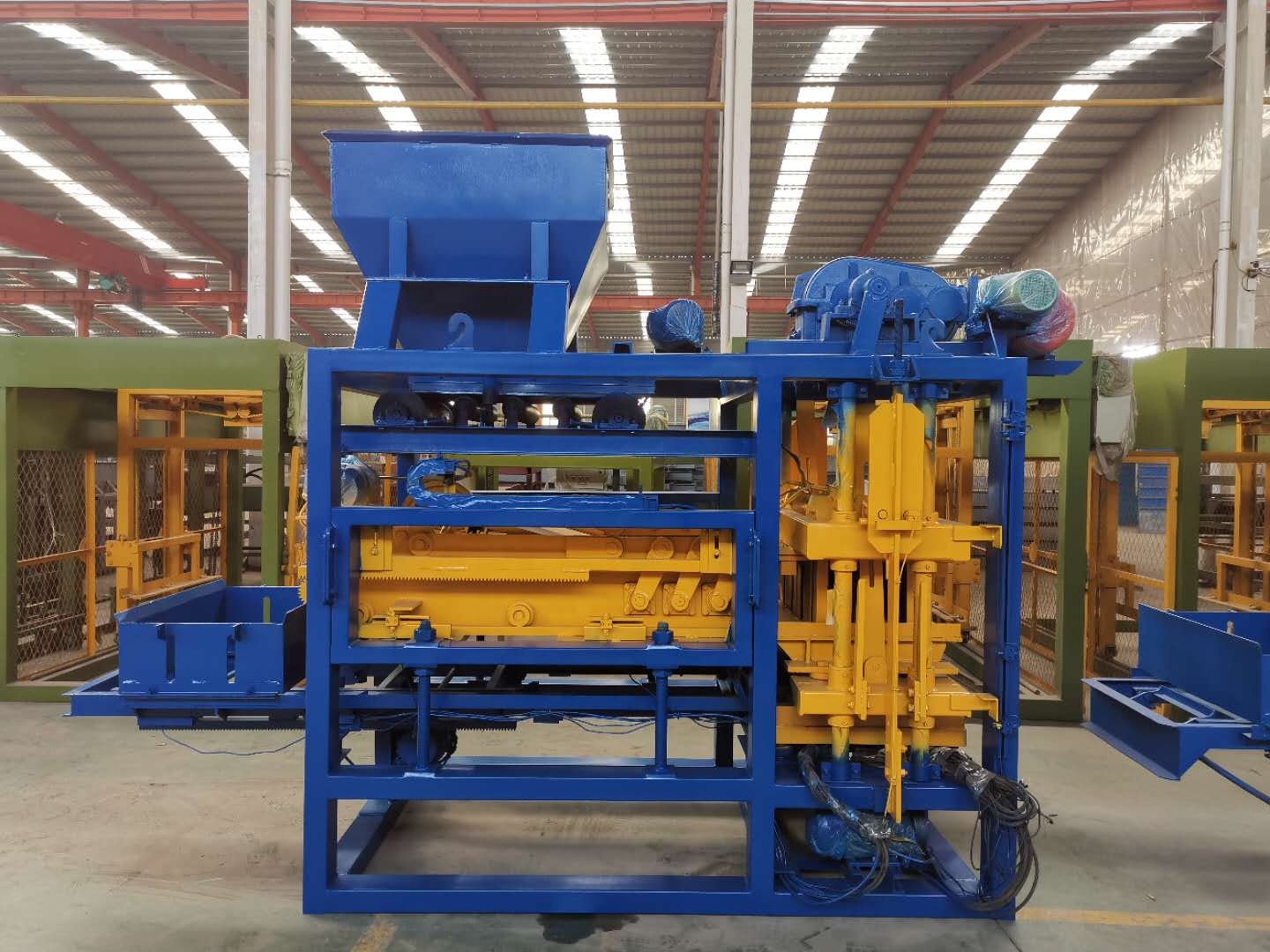

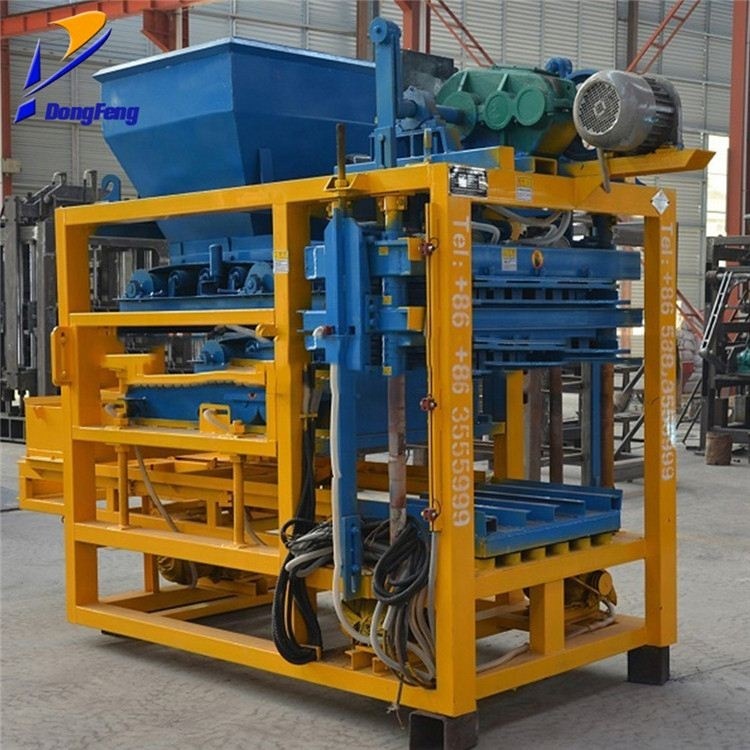

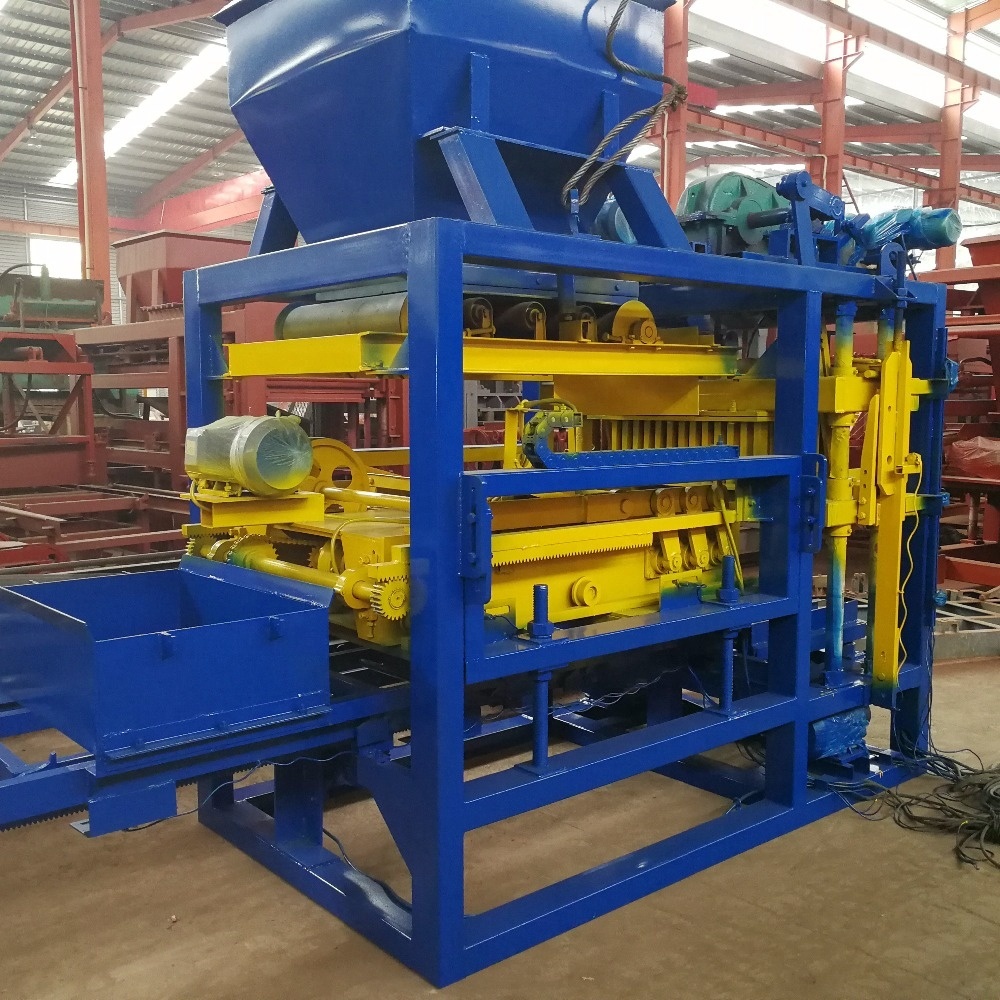

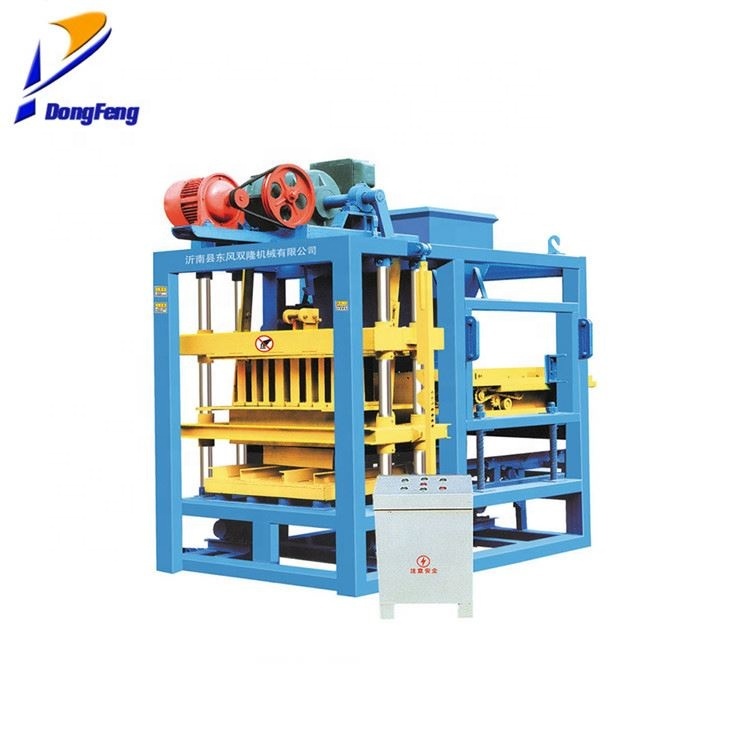

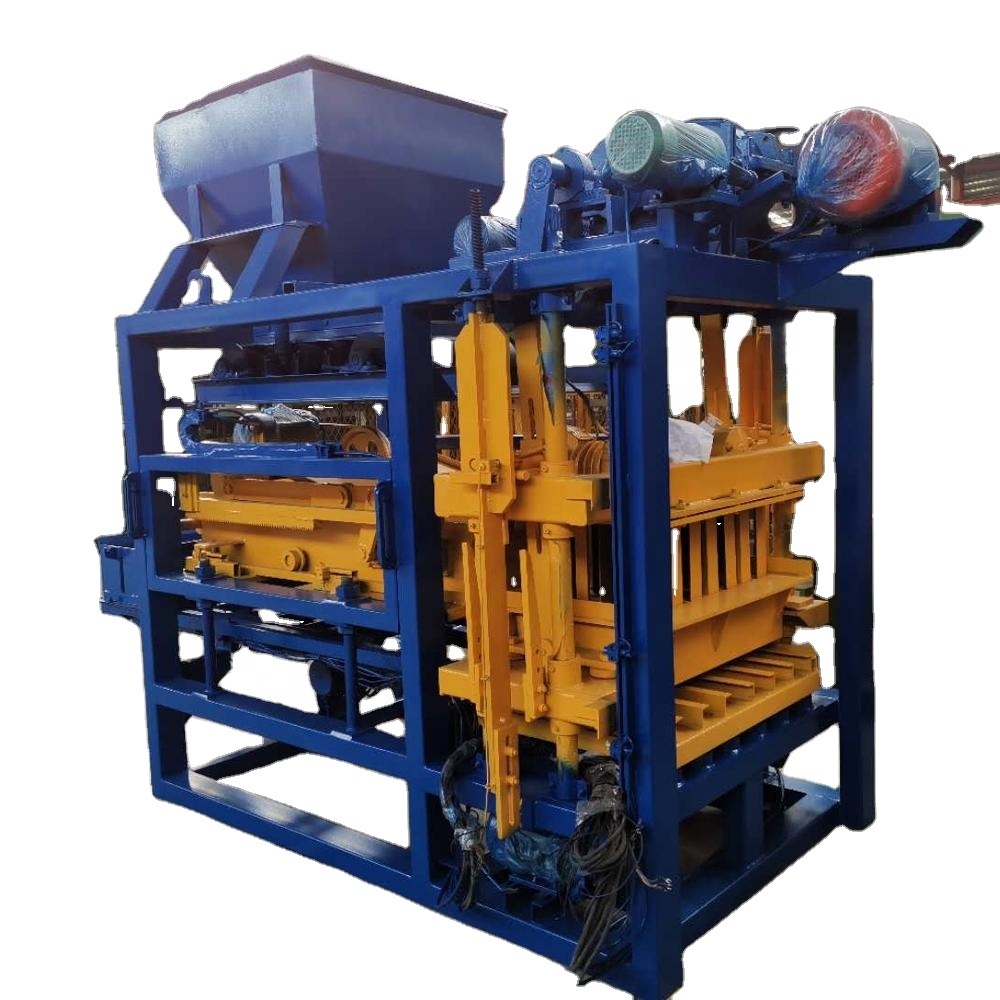

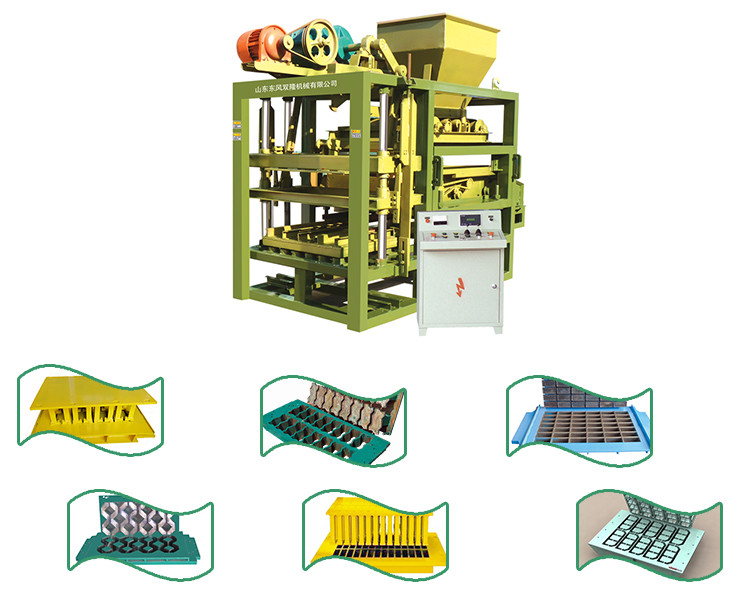

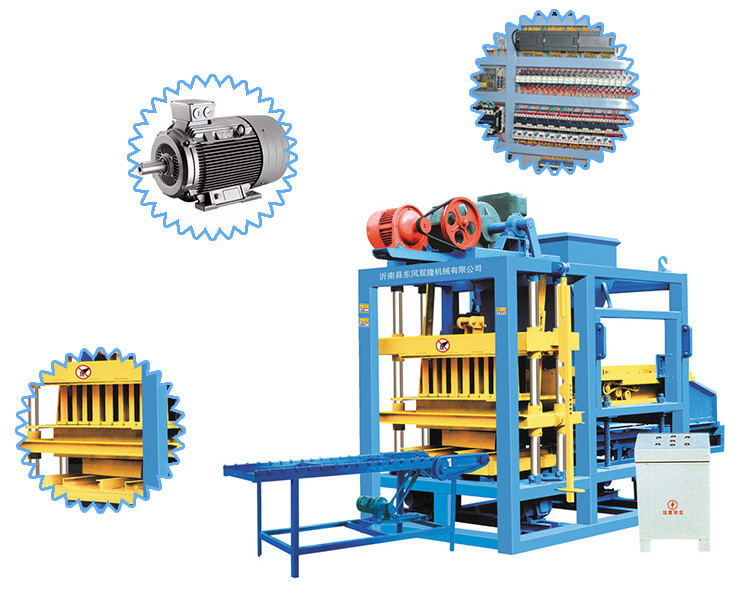

QT4-25 Concrete Brick Machine
|
Dongfeng Shuanglong Machinery sells the QT4-25 Automatic Block Machine, great for making hollow blocks, paver blocks, porous blocks, etc.
The factory also has other block machines: small types, mobile types, hydraulic types. Prices vary by machine type.
|
|
 |
 |
Specification
|
Dimension of host machine |
3400x2300x2650mm |
|
Host machine power |
22.95KW |
|
Voltage |
380v (As per client’s local voltage) |
|
Vibration force |
30KN |
|
Moulding cycle |
15-20s |
|
Forming style |
Hydraulic |
|
Pallet size |
900x550x30mm |
|
Weight of host machine |
3t |
|
Mixer Model |
JQ350 |
|
Items |
Quantity |
|
Host machine (control unit and pallets feeder) |
1 |
|
JQ350 mixer |
1 |
|
Belt conveyor (L: 6meter) |
1 |
|
Hydraulic unit |
1 |
|
Free mould |
1 |
|
Free trolley |
1 |
| Size(LxWxH) | Reference Picture | Cycle Molding | Pcs/Mould | Pcs/Hour | Pcs/8hrs | |
| 400x200x200mm |  |
15-20s | 4 | 600 | 4800 | |
| 400x100x200mm | |
15-20s | 7 | 1050 | 8400 | |
| 400x150x200mm | |
15-20s | 5 | 750 | 6000 | |
