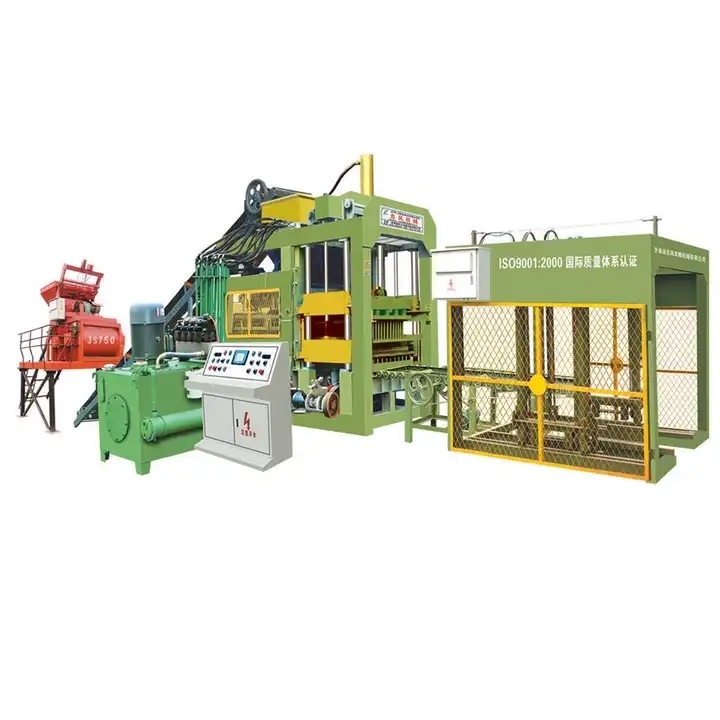

Name: Fully Automatic Qt8-15 Concrete Hollow Cement Laying Brick Block Making Machine
Brand: AAC Block and Panel Production Line—DFSL
Rating: 5 (1 reviews)

Desciption

Introduction of automatic brick block making machine

1. The aggregate feeding system adopts independent sliding way, easy to maintain and clean up.
2. PLC intelligent control, the use of data transmission devices, control system configuration security logic control and fault diagnosis system, and remote control function.
3. Unique material feeding box is equipped with rakes in several rows, which make sure raw materials feeding well-distributed. Completely solve the problem in material distributing of porous brick.
4. Original frequency vibration. By using the frequency conversion speed completes its exciting force and vibration frequency.
5. Color material feeding machine used to produce all kinds of paving blocks and floor tile.

6. A multi-purpose machine. By changing moulds, it can produce different specifications of hollow block, porous brick, pavement brick, and slope protection brick, etc.

Technical Parameters of cement block making machine

Product Type	QTY8-15 Automatic Block Making Machine
Dimension	6600x2040x2960mm
Pallet size	1000x850x30mm
Weight	7400kg
Control style	PLC
Forming style	Hydraulic and platform vibration
Power	43.5kw
Molding Cycle	17-25s
Block height	50-200mm
Voltage	As per client’s local voltage
Vibration force	100kn
Rated pressure	21Mpa
Vibration frequency	47-75HZ
Warranty	12 months
Material	Crushed stone, sand, cement, fly ash and other construction wastes.

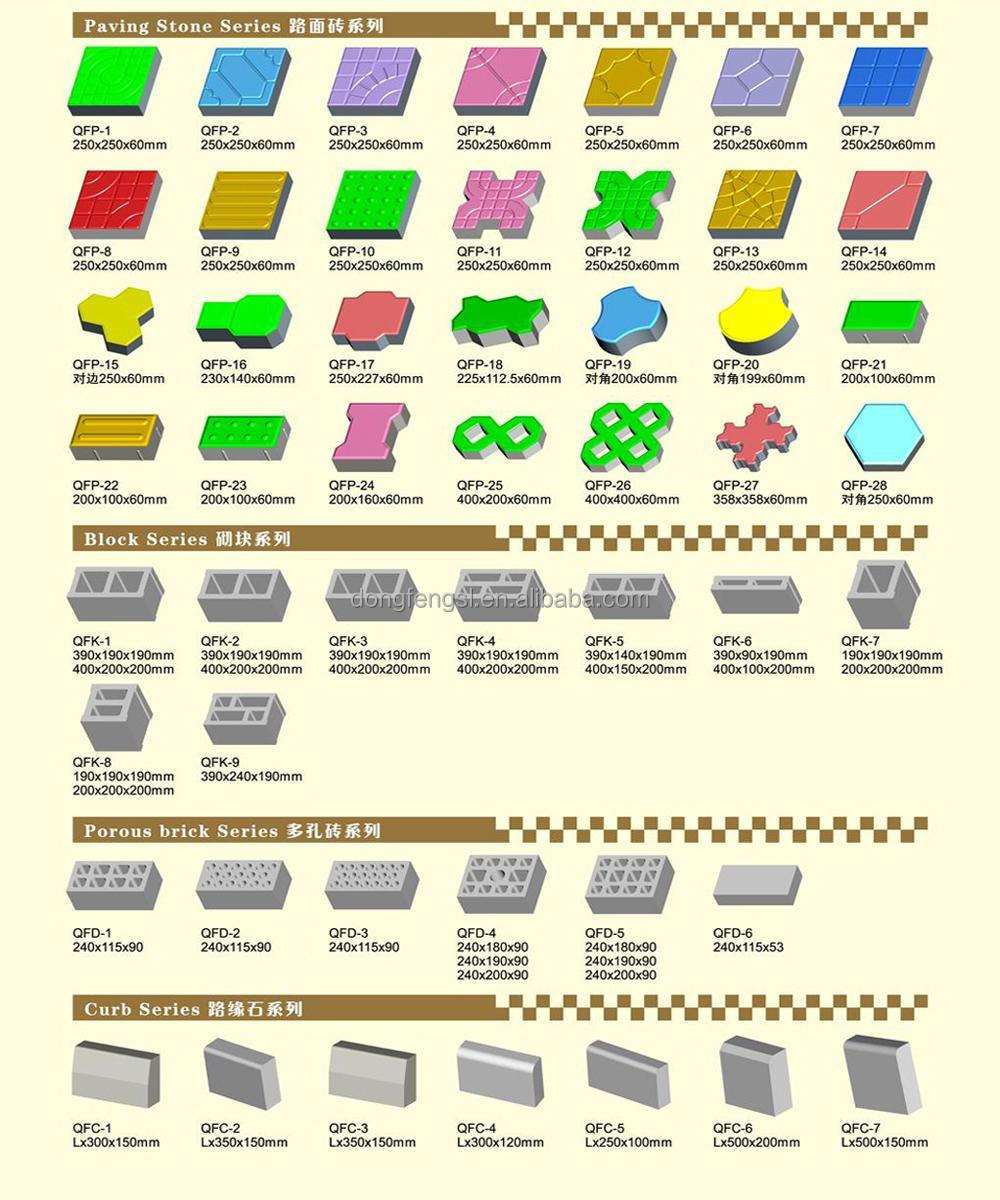

Applied Products	Concrete block, hollow block, solid block, cement block, solid/hollow/cellular masonry products, paving block with or without face mix, garden and landscaping brick, slabs, kerbstone, grass block, slope block, etc.
Applied Fields	Widely used in buildings, road paving, squares, gardens, landscaping, city constructions, etc.

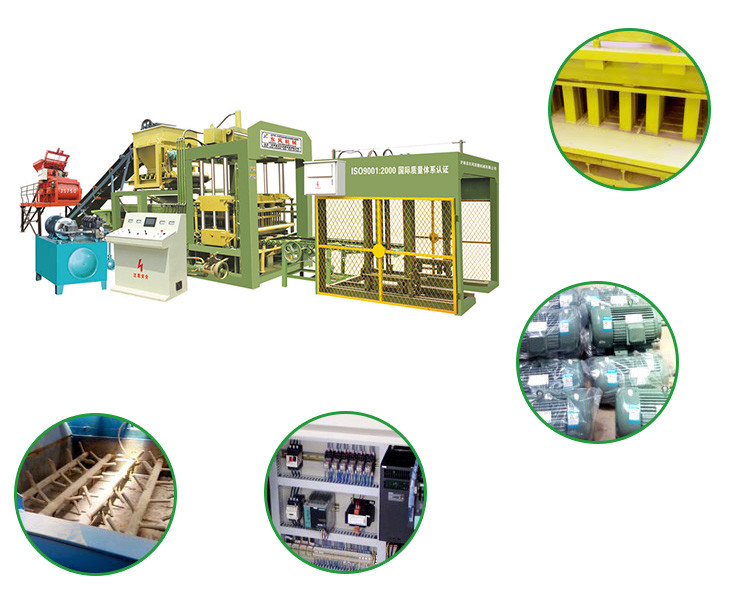

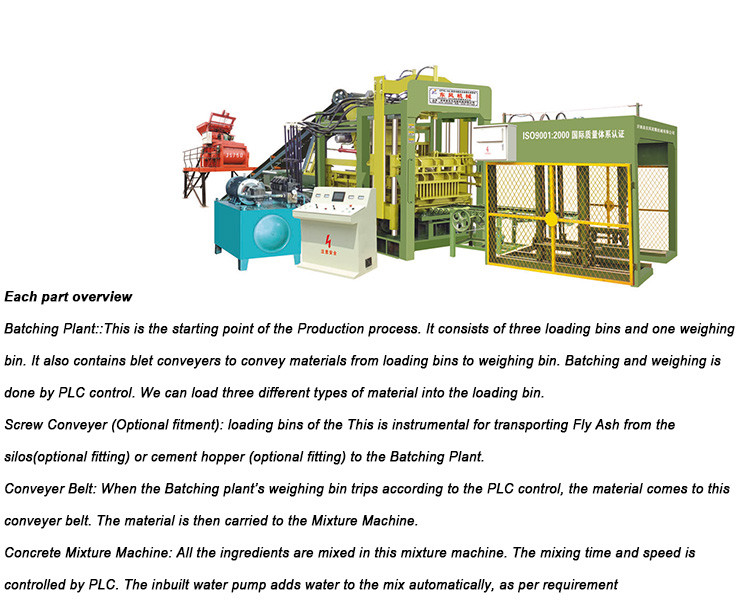

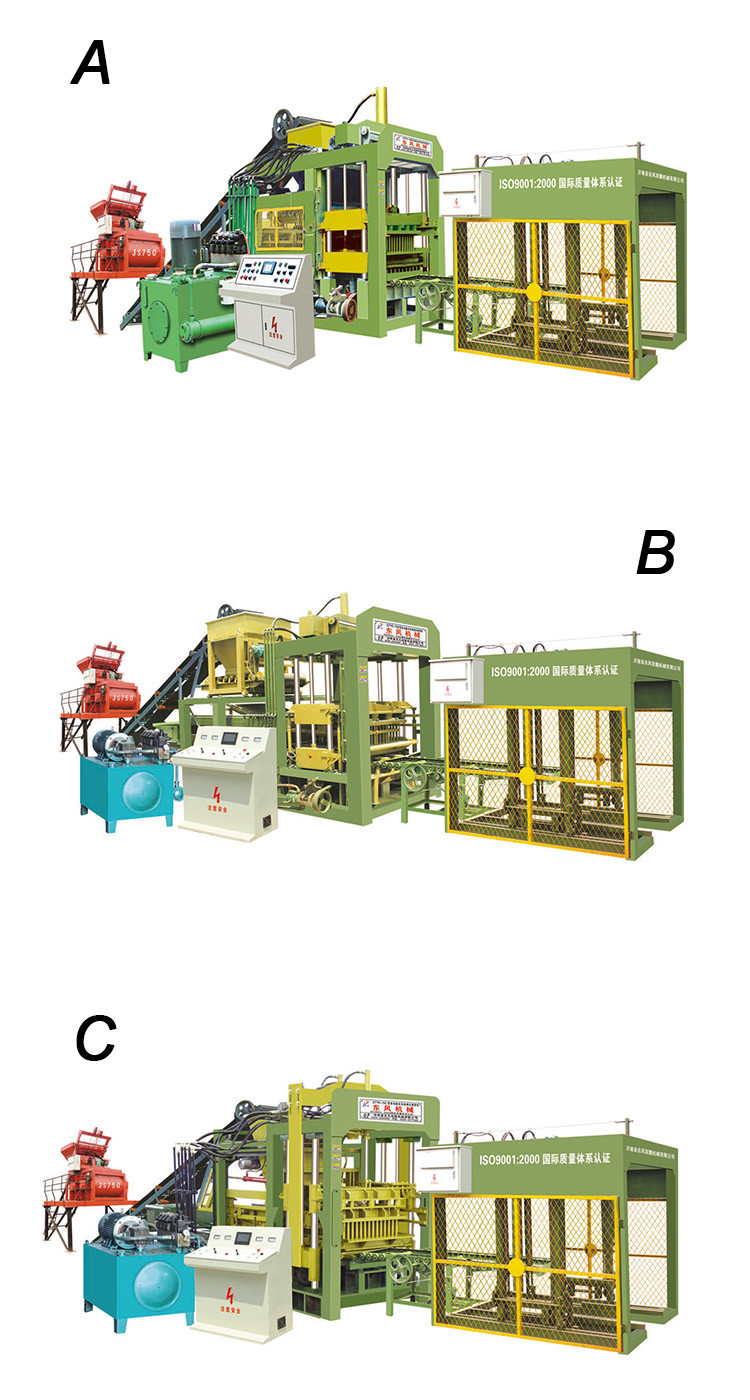

Pictures of hollow block making machine

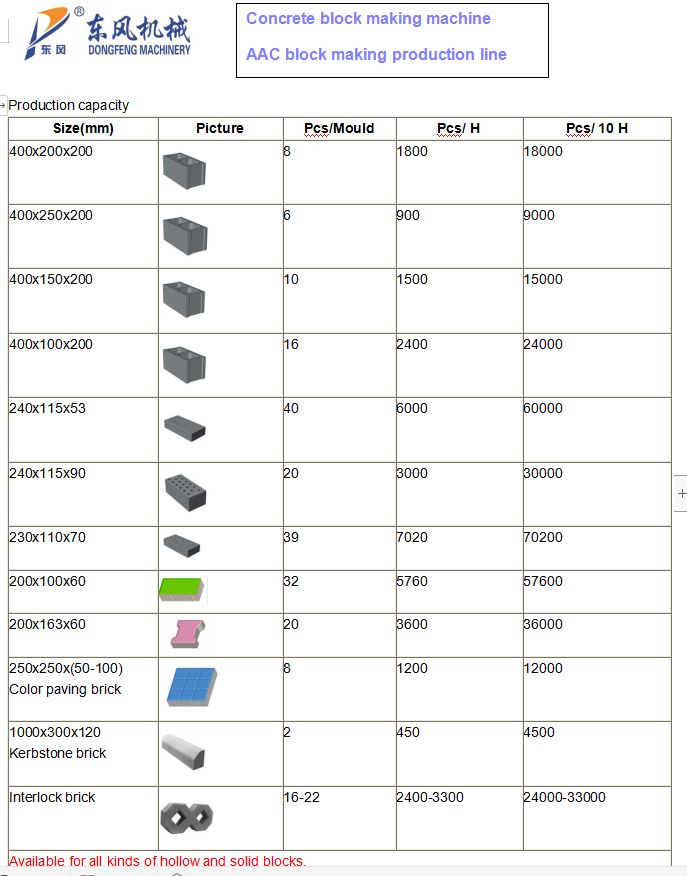

Capacity of concrete Laying Brick Block Making Machine
